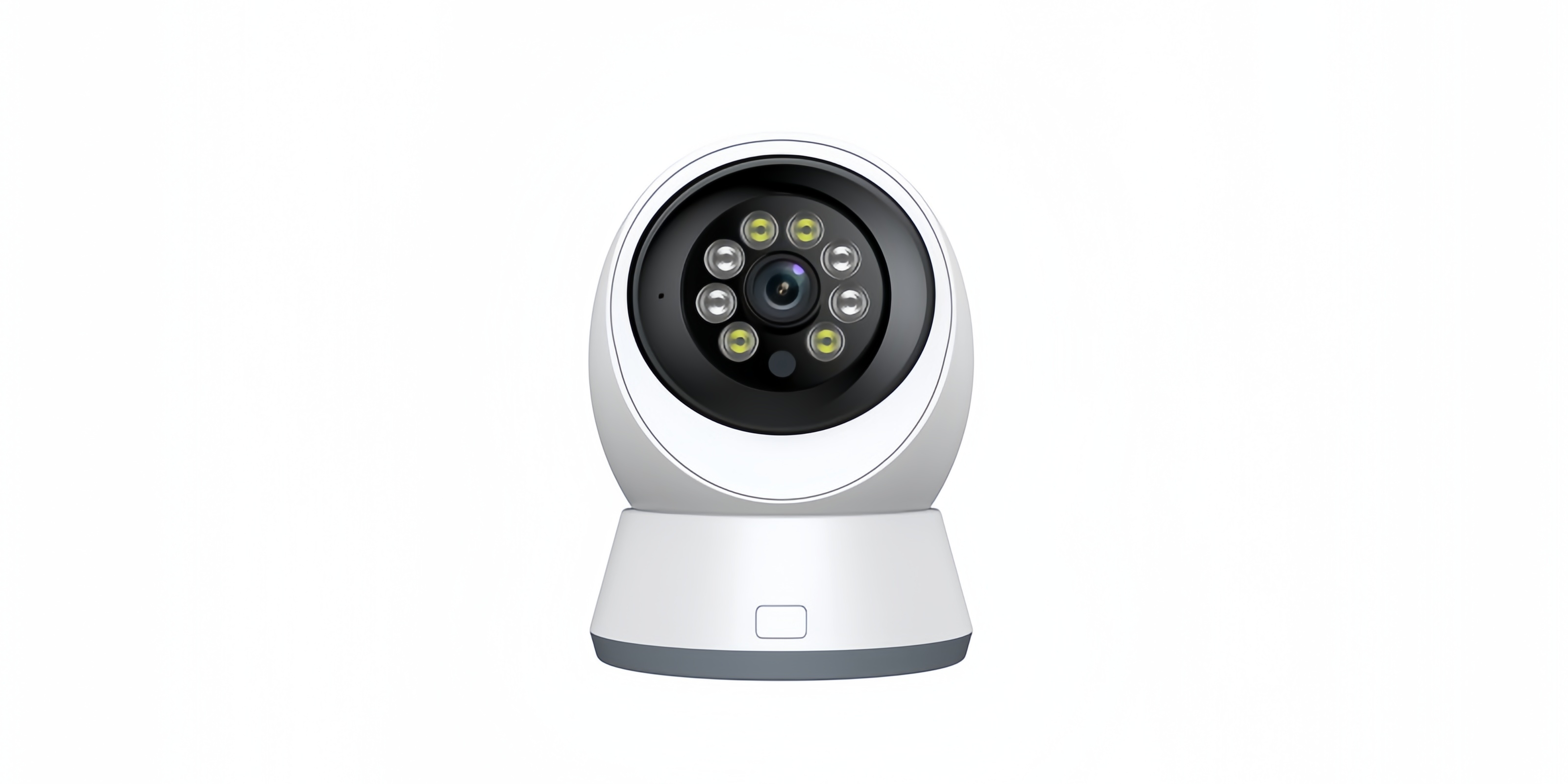

ycc365plus smart hd camera remote wireless camera SK-03
ycc365plus smart hd camera remote wireless camera with wi-fi smart camera app
System | Main Processor | HC1703 |
Image sensor | GC1346/2306 | |
Operation System | Embedded LINUX OS system | |
Video | Resolution | 720P/1080P |
Video Compression | Smart H.264+ | |
P/T Range | Horizontal:355° ; vertical: 90° | |
Object tracking | Support | |
Illumination | 0.1LUX/F1.2 | |
Picture Capture | Support | |
Video Flip | Support | |
Audio | Coding standard | G.711 |
Two-way audio | Support | |
Record management | Video file size | 2.5GB-4.5GB/Day |
Record Mode | Manual record, motion detection record, scheduled record, alarm record | |
Video storage | TF Card/Cloud | |
Playback, back up | Support | |
Alarm trigger | Video Push、Alarm recording、screen shot capture ,sending Email | |
Network | Network Interface | default without RJ45 Port |
WIFI | 802.11b/g/n | |
Stream | Dual Stream | |
Network Protocol | Support TCP/IP、RTSP、ONVIF, etc | |
Transmission mode | P2P ,Cloud Sever | |
Connection | Sweep QR code，AP Hotspot | |
Extend | Storage | Maximum support 128GB TF card |
Reset key | Support | |
Power | Power input | DC 5V 1.5A |
Power consumption | 6W | |
Working Environment | Suitable occasion | Home,shop,School,factory |
Installation mode | Flat put、Wall mounted、hoisting | |
Working Temperature | -20℃－＋55℃ | |
Working humidity | 10%－90% | |
Others | Camera lens | 3.6MM |
View Angle | 90° | |
Lamp board | Dual light 8pcs white leds and 8pcs Infared leds | |
Product size | 108*72*79 (mm) |
Support Apps：
1.ICAM 365( Default)
2.Tuya
3.YCC365 Plus
Packing list:
1. Camera( NO TF card)*1
2. Instructions*1
3. DC 5V 2A Power supply*1
4. Crew bag*1
5. 1m power cord*1
6. Bracket*1
Package size:
1pcs:95*85*150(mm)
N.W: 0.28KG
50pcs/ctn
size: 439*310*502(mm)
N.W:14.7KG
Support OEM services ,gift box package ,brand logo print.
